EPC 10 Amplifier & Hum Bug

Question:

Is it possible to combine a "Hum Bug" together with an EPC 10 amplifier?

Answer:

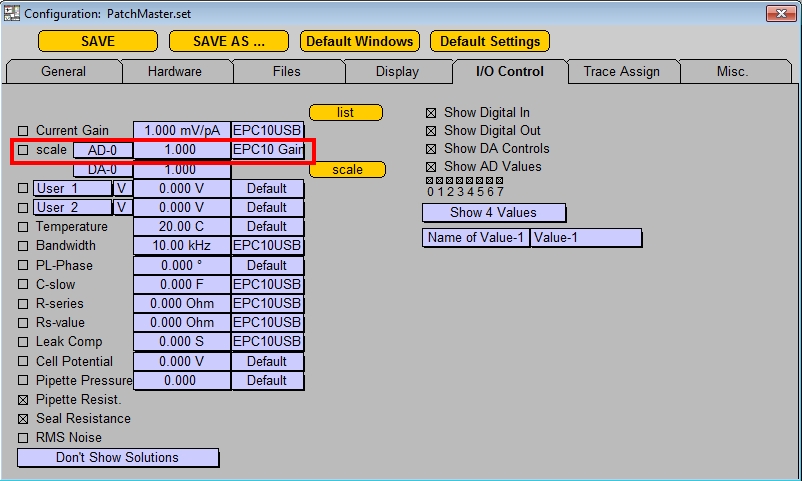

Yes, this is possible. Connect the Current Monitor (Filter 2) on the front panel of the EPC 9/10 to the "Hum Bug". Feed back the altered signal from the "Hum Bug" into an AD channel, e.g. AD-0. In the Configuration (I/O Control Tab) of PATCHMASTER you have to adjust the scaling of the signal you feed into the corresponding AD.
